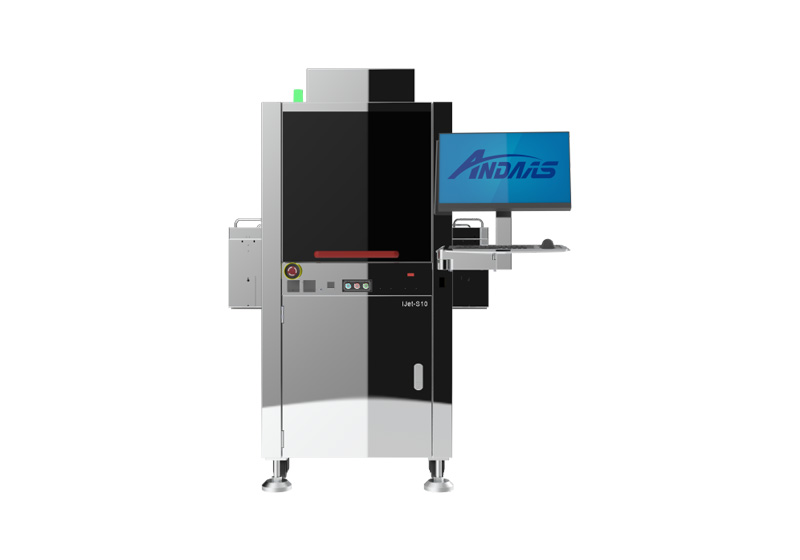

iJet-10 Dispensing Machine

产品特点:

Standard Features

1. Computer control with Windows OS

2. CCD visual positioning system

3. Servo motor with ball screw

4. Inline CCD visual programming or gerber upload

5. UPS and voltage stabilizer

6. ESD grounding point

7. CE certified

1. Heated valves for viscosity control

2. 35 degree tilt and 360 degree rotation

3. PCB heater enhances material flow for underfill applications

4. Precision weight measurement ensures accurate volumetric dispensing

5. Multiple valves available: Pneumatic jet valve, Slide valve and Screw valve

6. Laser height detection to calibrate Z axis automatically for component deformation

技术规格:

Specifications	iJet-10 Dispensing Machine
Dimension（mm）	L761×W1350×H1560
Dispensing Area（mm）	X: 320 Y: 400 Z: 30
Repeatability (mm)	±0.005
Maximum moving speed (mm/s)	1300
Maximum acceleration (g)	1.3
Standard configuration	Three axes motion platform; Visual recognition system; Vacuum cleaning device; Laser altimeter; Low liquid level detection device; Sound and light alarm device; Single conveyor module
Optional configuration	Piezoelectric injection module; Weighting module; Lane tooling heating module; Automatic loading and unloading module; Dual-valve module; Rotating R-axis module; 3D dispensing module
