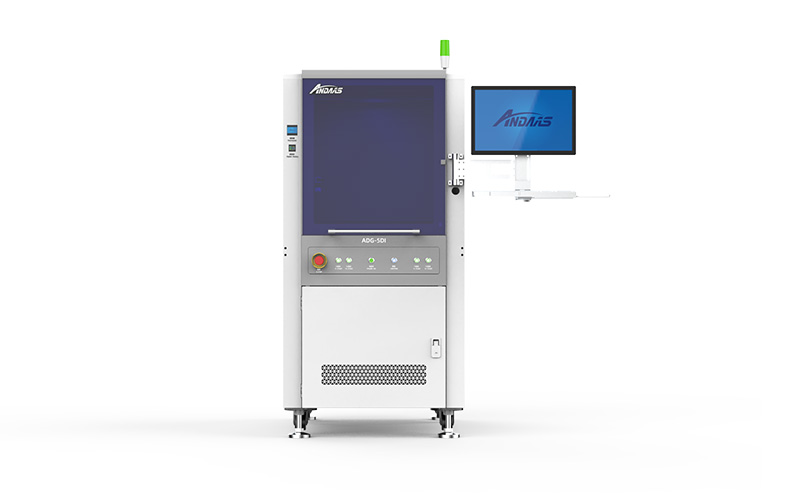

ADG-5DI Five-axis Dispensing Machine

产品特点:

1. WINDOWS operating system - Using computer control, fault sound and light alarm and menu display

2. CCD visual positioning system

3. Adopt linear motor + motion control card

4. Modular design - can be combined as required, including single platform, double platform, conveying system, glue path detection system.

5. Automatic thermostatic system of valve - ensure consistent fluidity of paint

6. Optional laser height detection system - the Z axis height can be automatically calibrated after the workpiece is deformed

7. Optional precision weighing system - intelligent control and detection of dispensing volume, to ensure the consistency of dispensing

技术规格:

Specifications	ADG-5DI
Dimension (mm)	L1166 * W1200 * H1600
Control	Industrial personal computer + motion control card
Dispensing working area (mm)	X1=200; X2=200; Y=200
Number of principle axis	5 axes
Drive mode	Linear motor (X、Y、A、U) / Servo motor(Z)
Conveyor mode	ESD belt
Amplitude modulation mode	Electric, 50-200mm
Conveyor speed	Stepping motor, 2-5m/min
Maximum Moving speed (mm/s)	1000
Repeatability (mm)	±0.012
Coating capacity (CC)	30/50
Communication protocol	SMEMA
Programming	The mounter files can be imported; Online visual programming
Input power	220V 50/60Hz
Required air (Mpa)	≥ 0.65
Rated power (kw)	3
Weight (kg)	500
Equipment alarm	Menu + Sound and light alarm
Safety standards	CE
Glue valve selection	Pneumatic injection valve, piezoelectric valve, screw valve can be used
Options of extended function	Booster pump; UPS; Voltage Regulator; Barcode scanner Microbalance (0.1mg); Laser altimetry (SICK)
